Exploring the Role of Energy Storage Technology in Microgrids

Introduction



Microgrids represent a paradigm shift in how electricity is generated, managed, and delivered. These localized grids are not just smaller versions of the traditional centralized grid; they are dynamic and capable of operating both connected to and independent from the main power grid. They incorporate distributed energy resources (DERs) such as solar panels, wind turbines, and energy storage systems to provide a resilient and sustainable energy supply. At the heart of microgrids lies energy storage technology, a critical component that enhances stability, efficiency, and reliability. This article delves into the role of energy storage technology in microgrids, examining various storage methods, their advantages and disadvantages, and the control strategies that make effective use of these systems.



The Significance of Energy Storage in Microgrids



The energy landscape is experiencing a transformation driven by the need for clean energy, technological advancements, and the decentralization of power generation. Microgrids are a manifestation of this transformation, serving as a nexus for integrating renewable energy sources and providing a reliable power supply. Energy storage systems (ESS) are essential for the effective functioning of microgrids, as they address the inherent intermittency of renewable energy sources and provide a buffer to maintain the balance between supply and demand.



Energy storage technologies enable microgrids to store excess energy when demand is low and dispatch it when demand is high, effectively managing energy flows and ensuring continuous power supply. This capacity to store and release energy on demand is vital for microgrid stability, especially during peak load periods or when renewable sources are not generating power.



Role of Energy Storage Devices



Providing Short-term Power Supply

Microgrids operate in two primary modes: grid-connected and islanded. In the grid-connected mode, the microgrid works in conjunction with the larger grid. However, during disturbances or quality events, the microgrid may disconnect and operate in island mode to maintain local power supply. Energy storage devices facilitate a seamless transition between these modes, providing short-term power supply and system stability.



In cases where renewable energy sources like solar and wind are not producing energy (e.g., at night or during still weather), energy storage systems can supply power to meet demand. This ability to bridge gaps in generation is essential for the reliability of the microgrid.



Maintaining System Stability

The fluctuating nature of renewable energy generation can lead to power quality issues such as voltage fluctuations and frequency deviations. Energy storage devices can absorb excess energy or supply energy to counteract these fluctuations. They act as buffers, smoothing out the variability and enhancing the stability of both microgrids and the larger grid when interconnected.



Moreover, energy storage can quickly manage active and reactive power, affecting the voltage and power flow within the microgrid, which helps maintain voltage and frequency stability. This role is analogous to the primary frequency regulation in traditional power systems and is both technically and economically feasible.



Improving Microgrid Power Quality

Power quality is becoming increasingly important, and energy storage systems play a crucial role in this aspect. By controlling grid-connected inverters, energy storage systems can provide both active and reactive power, thus improving the power quality of the microgrid. Issues like voltage sags, surges, and interruptions can be mitigated with energy storage, which provides fast power buffering and active or reactive power compensation.



Types of Energy Storage Components



Energy storage technologies come in various forms, broadly categorized as chemical and physical energy storage:



Pumped Hydro Storage (PHS)

PHS is the most established method of energy storage, using two reservoirs at different elevations to store and generate energy through the movement of water. While effective for large-scale applications, PHS is not typically suitable for microgrid applications due to its environmental impact, long construction times, and high capital costs.



Compressed Air Energy Storage (CAES)

CAES uses surplus electricity to compress air for storage, which is later used to drive a turbine for electricity generation. This technology often works in conjunction with gas turbines and has traditionally relied on burning fossil fuels. While CAES is more suitable for larger systems, smaller systems face efficiency challenges and environmental concerns associated with burning fossil fuels.



Flywheel Energy Storage (FES)

FES stores kinetic energy in a rotating mass and is capable of rapid charging and discharging cycles. It offers high power density and long service life but is constrained by mechanical limits and rotational speeds.



Superconducting Magnetic Energy Storage (SMES)

SMES stores energy in the magnetic field of a superconducting coil. It features fast response times and high efficiency but comes with high costs and significant operational expenses related to maintaining low temperatures.



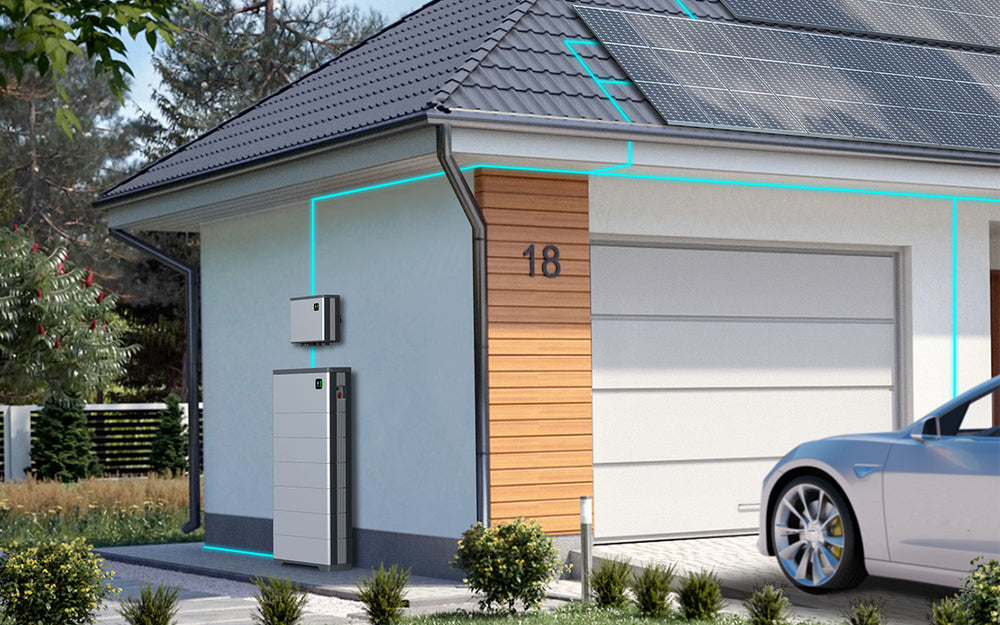

Battery Energy Storage (BES)

BES, particularly lithium-ion batteries, has gained prominence in microgrids due to its versatility and declining costs. Batteries can provide power during peak loads and assist in voltage stabilization but have limitations in terms of cycle life, charging time, and safety concerns.



Supercapacitors

Supercapacitors, also known as ultracapacitors, store energy electrostatically and are ideal for short-term energy storage due to their rapid charge and discharge capabilities. Although currently more expensive, they are seen as an efficient, practical, and environmentally friendly option for the future.



Control Strategies for Energy Storage Devices



Effective control of energy storage systems is crucial for maximizing their benefits in microgrids. The control strategies involve managing the active and reactive power supplied by the energy storage systems to achieve voltage regulation and load stability. These strategies can be complex, requiring precise calculations and fast response times to maintain power quality and suppress system oscillations.



Voltage and Frequency Regulation

By controlling the active (P) and reactive (Q) power inputs from the energy storage system, microgrids can maintain a stable voltage and frequency. The control strategy typically involves using phase angle and voltage differences to generate the desired control power, which is then converted into active and reactive currents that are fed into the system.



Suppressing System Oscillations

Energy storage systems can also help dampen power oscillations caused by the variability of renewable energy sources or system faults. By controlling the energy storage system's power output, active and reactive power at the load end can be adjusted to stabilize the power input to the load, thus suppressing oscillations.



Conclusion



Microgrids, as an emerging infrastructure for distributed power generation, leverage energy storage technology to enhance power quality, system stability, and economic benefits. Energy storage also plays a crucial role in peak load management and integrating intermittent renewable energy sources. With the growth of renewable energy, the expansion of microgrids, and the advancement of energy storage technologies, the application of energy storage in microgrids is expected to become even more prevalent, underscoring its significance in the future of energy systems.
